COMPACT CASSETTE
360° Air Flow
LED display
Central Control Management
Built-in Condensate Drain Pump
Individual Louvre Control
Condenser and Compressor Heater

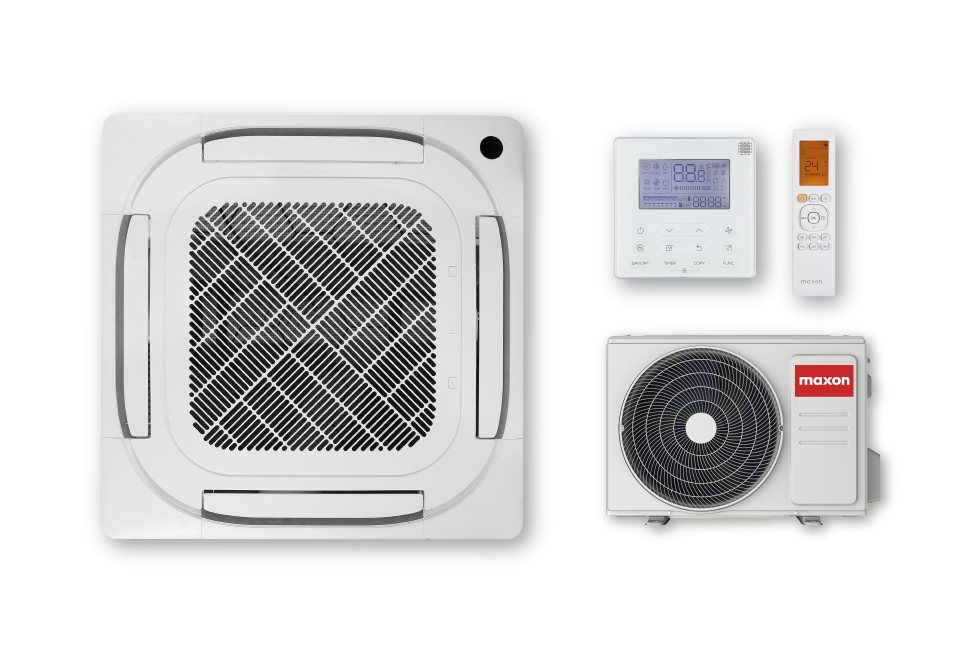

Compact cassette commercial systems
EVENLY AIR DISTRIBUTION
A 360° air outlet ensures even circulation of heated or cooled air in every part of the space. An additional fresh air intake provides fresh and natural air in the room. The built-in condensate drain pump allows for lifting the condensed water up to 750 mm.
Function OVERVIEW
Compact cassette
MXI-12HCA013i- Cooling: 3,50 kW
- Heating: 3,80 kW
- Air flow-Hi/Mid/Low: 620/5100/420 m3/h
- Sound pressure level -Hi/Mid/Low: 41/36/33/25.5 dB
- Product Dimensions (WxDxH) indoor unit: 570x570x260 mm
- Product Dimensions (WxDxH) outdoor unit: 765x303x555
- External dimension – panel MX-PTMB-03: 647x647x50 mm
Compact cassette
MXI-18HCAO13i- Cooling: 5,30 kW
- Heating: 5,50 kW
- Air flow -Hi/Mid/Low: 720/620/500 m3/h
- Sound pressure level -Hi/Mid/Low: 43/39.5/35.5/29 dB
- Product Dimensions (WxDxH) indoor unit: 662x662x317 mm
- Product Dimensions (WxDxH) outdoor unit: 805x330x554 mm
- External dimensions – Panel MX-PTMB-03: 647x647x50 mm
